1995-2001 JDM RD1 HONDA CRV Brake Master Cylinder Kit

1995-2001 JDM RD1 HONDA CRV RHD Brake Master Cylinder Kit

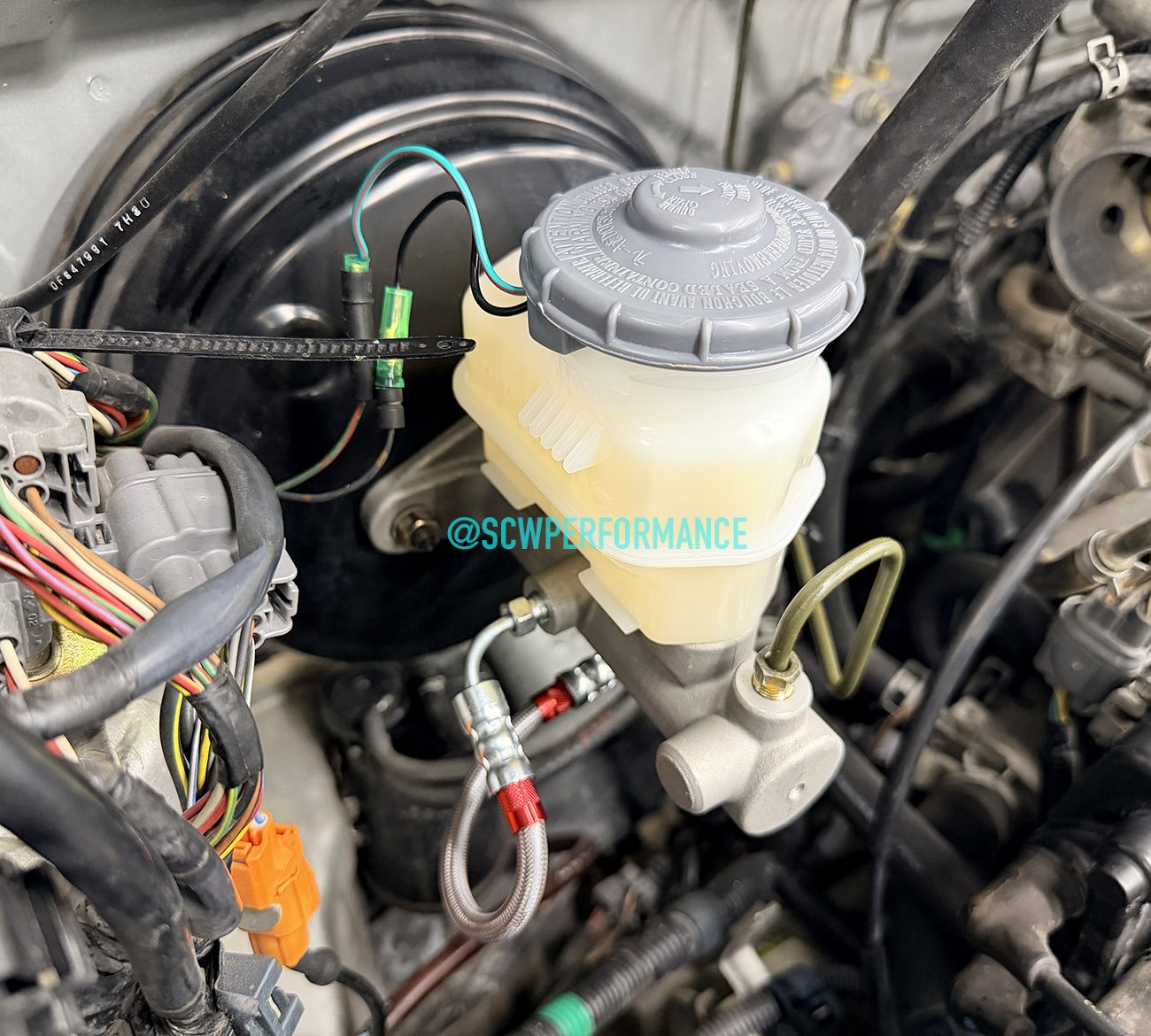

OE UPGRADED Brake Master Cylinder Conversion Kit for 1995-2001 JDM RHD Honda CRV RD1/RD2 Fits both 2WD and 4WD. This is a NEW UNIT, not a remanufactured used one.

This is only for the RHD / Right Hand Drive Honda CRV - This kit does not fit LHD / Left Hand Drive CRV.

This is a custom kit that we put together for solving the RHD CRV Brake Master replacement which is discontinued from Honda. We pair a quality brand new master cylinder with a slightly-larger piston for better stopping performance - (with a LIFETIME PARTS Warranty) - and a custom conversion line for a plug-and-play installation requiring no modifications to your vehicle. Our custom conversion hose is stainless braided PTFE with a 3000psi specification (about 5 times the pressure of the OEM) rating, and DOT rated.

DETAILED Instructions are included with this kit.

If your original 20+ year old RHD brake master is leaking fluid, or has low pedal pressure it's time to replace that old unit! We do also offer custom stainless brake caliper lines in our other items listed.

IMPORTANT NOTE: For ABS Equipped CRV, the back of the master cylinder has a small steel tube (pin) protruding from the rear seal about 1" long. The NON-ABS equipped models do not have the pin, the back of the master cylinder is completely flat (The item shown above is a NON-ABS model).

You can easily very which master cylinder you need by removing the (2) 12mm nuts / washers off the master cylinder where it connects to the brake booster - Gently pull the master/line assembly forward enough to look behind at the rearmost connection. We have encountered customer vehicles that had the incorrect master cylinder for their specific vehicles before, so it's a good idea to check first prior to ordering!

OEM# 46100-S47-003, 46100-S47-013
