1995-2001 JDM RD1 HONDA CRV RHD Brake Master Cylinder non-ABS

1995-2001 JDM RD1 HONDA CRV RHD Brake Master Cylinder

NON-ABS OE Replacement Brake Master Cylinder for 1995-2001 JDM RHD Honda CRV RD1/RD2 Fits both 2WD and 4WD. This is a NEW UNIT, not a remanufactured used one.

This is only for the RHD / Right Hand Drive Honda CRV without ABS

If your original 20+ year old RHD brake master is leaking fluid, or has low pedal pressure it's time to replace that old unit!

We do also offer a custom UPGRADED Performance Master Cylinder, see our other items!

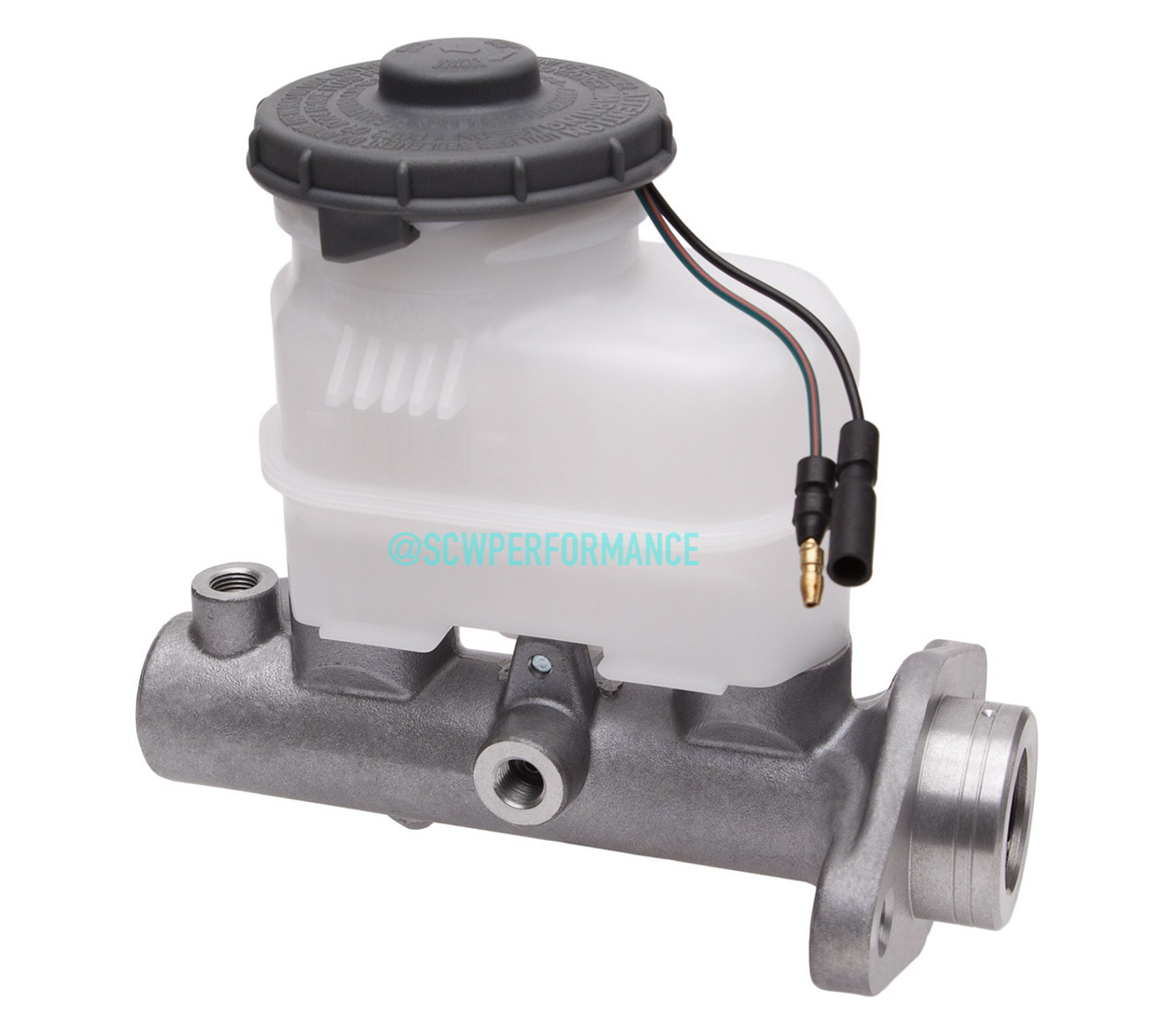

IMPORTANT NOTE: For ABS Equipped CRV, the back of the master cylinder has a small steel tube (pin) protruding from the rear seal about 1" long. The NON-ABS equipped models do not have the pin, the back of the master cylinder is completely flat (The item shown above is a NON-ABS model).

You can easily very which master cylinder you need by removing the (2) 12mm nuts / washers off the master cylinder where it connects to the brake booster - Gently pull the master/line assembly forward enough to look behind at the rearmost connection. We have encountered customer vehicles that had the incorrect master cylinder for their specific vehicles before, so it's a good idea to check first prior to ordering!

OEM# 46100-S47-003, 46100-S47-013
