1996-2002 JDM RF1 HONDA STEPWGN Brake Master Cylinder Kit

1996-2002 JDM RF1/2 HONDA STEPWGN Brake Master Cylinder Kit

OE Replacement Brake Master Cylinder Conversion Kit for 1996-2002 JDM RHD Honda Stepwgn RF1/RF2 Fits both 2WD and 4WD. This is a NEW UNIT, not a remanufactured used one. No core charge. This kit is available for ABS and NON-ABS Models - Please make the correct selection when ordering - If you are unsure, contact us prior to ordering.

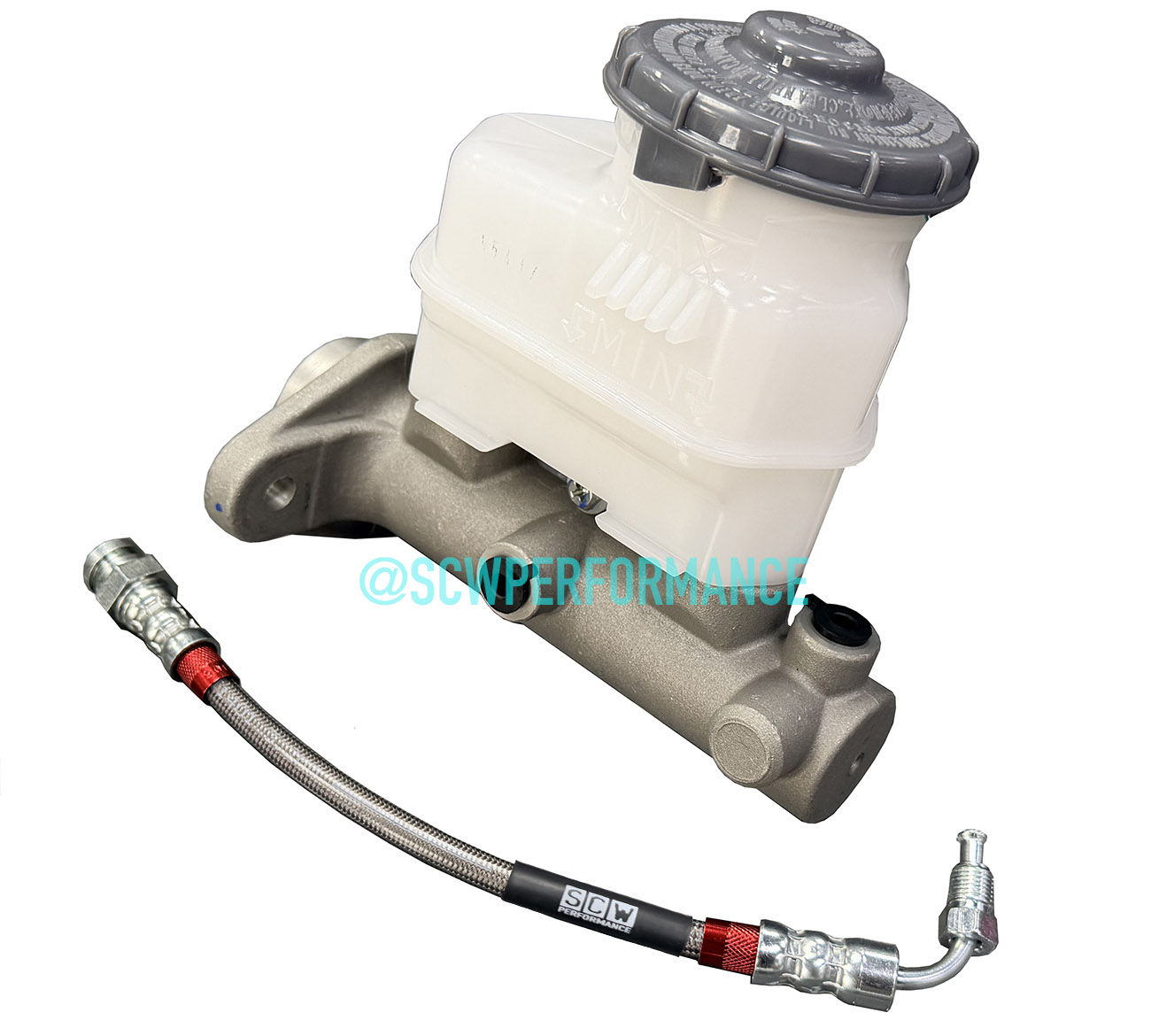

This is a custom kit that we put together for solving the RHD Stepwgn Brake Master replacement which is discontinued from Honda. We pair a quality brand new master cylinder (with a LIFETIME Warranty) and a custom conversion line for a plug-and-play installation requiring no modifications to your vehicle. Our custom conversion hose is stainless braided PTFE with a 3000psi specification (about 5 times the pressure of the OEM) rating, and DOT rated.

DETAILED Instructions are included with this kit.

If your original 20+ year old RHD brake master is leaking fluid, or has low pedal pressure it's time to replace that old unit! We do also offer custom stainless brake caliper lines in our other items listed.

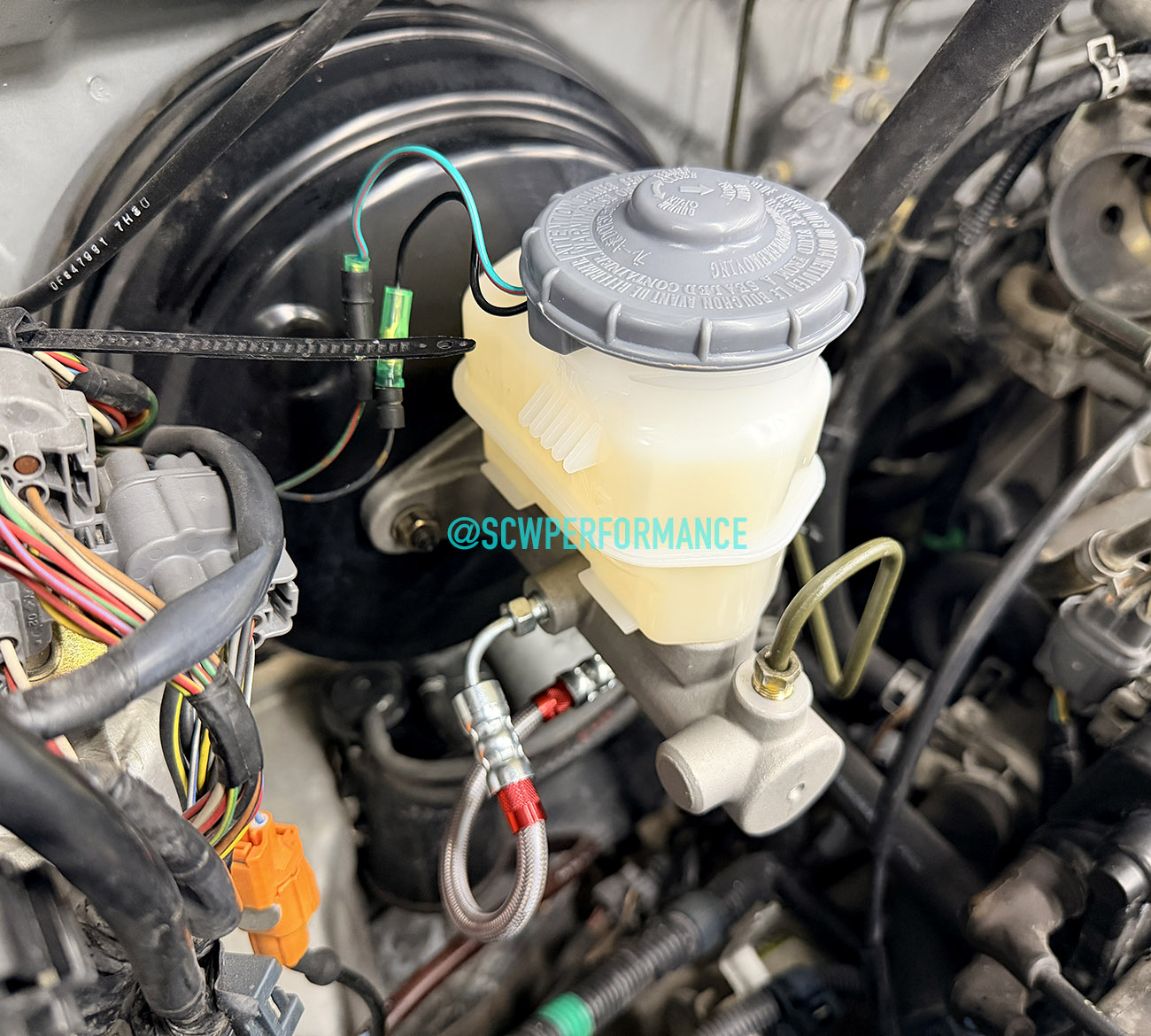

IMPORTANT NOTE: For ABS Equipped Stewpwgns, the back of the master cylinder has a small steel tube (pin) protruding from the rear seal about 1" long. The NON-ABS equipped models do not have the pin, the back of the master cylinder is completely flat (The item shown above is a NON-ABS model).

You can easily very which master cylinder you need by removing the (2) 12mm nuts / washers off the master cylinder where it connects to the brake booster - Gently pull the master/line assembly forward enough to look behind at the rearmost connection. We have encountered customer vehicles that had the incorrect master cylinder for their specific vehicles before, so it's a good idea to check first prior to ordering!

OEM# 46100-S47-003, 46100-S47-013
