1996-2002 JDM RHD HONDA STEPWGN Front Lower Arm Kit

1996-2002 JDM RHD HONDA STEPWGN Front Lower Arm Kit

1 Service Kit for the front suspension, Front lower control arm. (2 kits per vehicle needed).

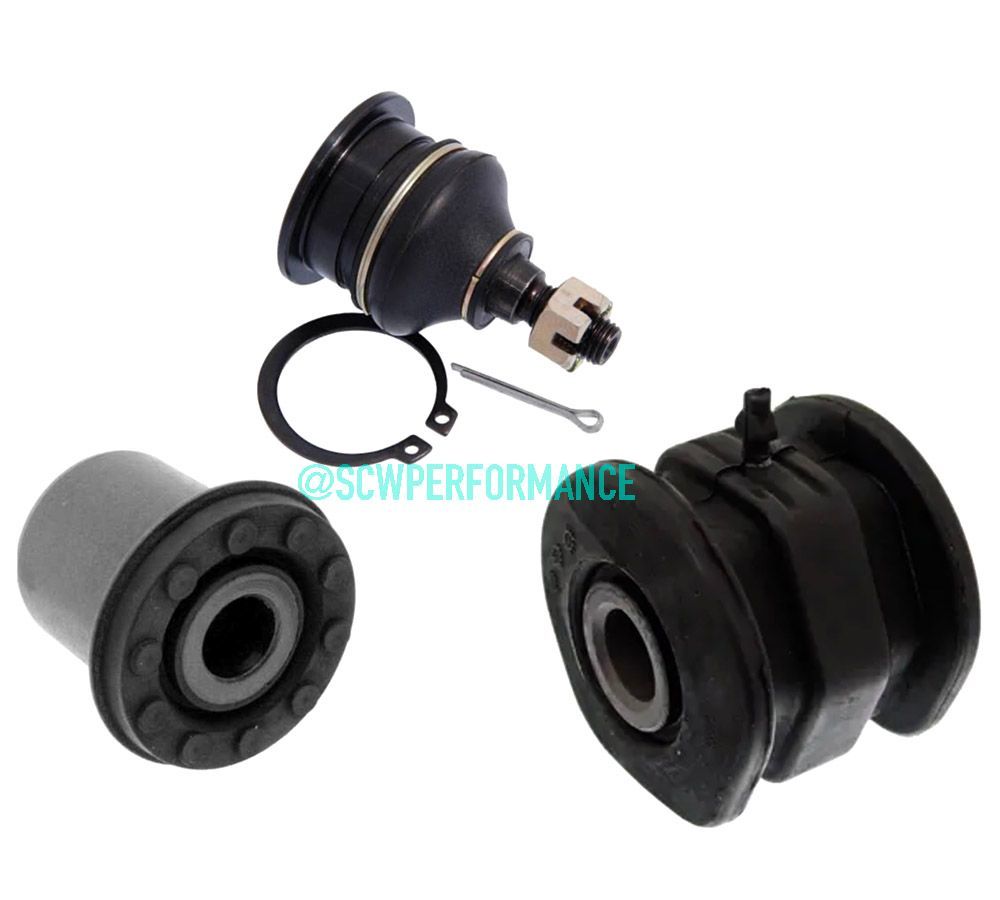

1 Front Lower Forward Bushing (Small), 1 Front Lower Rearward Bushing (Large) + 1 Ball Joint for 1996-2002 JDM Honda StepWgn (Step Wagon RF1/RF2) Fits both 2WD and 4WD. OEM Honda only sells the ball joint & forward bushing as a full replacement arm assembly, this kit is made to be a direct replacement for your factory suspension arm components. The ball joint will require tack-welds to secure it to the arm after it is pressed in the hole. The old one must be ground to be removed (has factory tack weld on the flange).

These plug and play replacements are just like OEM.

1996-2002 Honda StepWgn RF1 / RF2, 2 or 4WD. (Japan Spec) - Replacement for OE 51360-S7S-003 Honda, 51391-S01-004 BUSHING, 51360-S47-003, 51360-S47-013, 51391-S47-005, 90363-S47-000

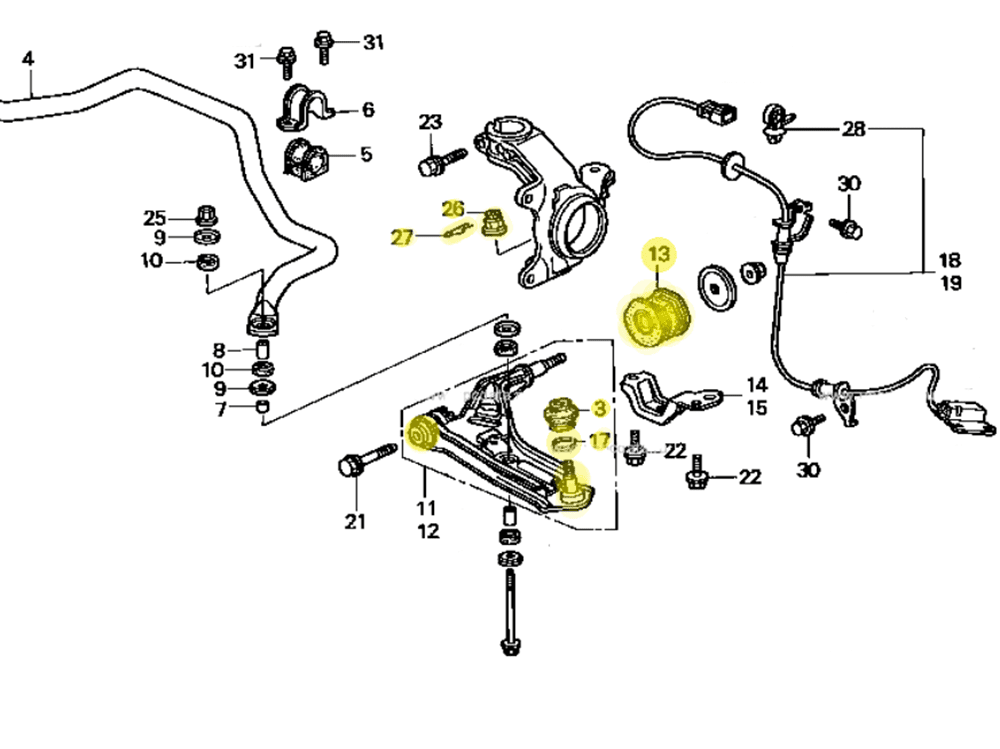

(SEE FIG. 11/12 IN DIAGRAM - FRONT LOWER ARM) - Parts #13, #26, #27, #11 & #12 front bushing and ball joints
